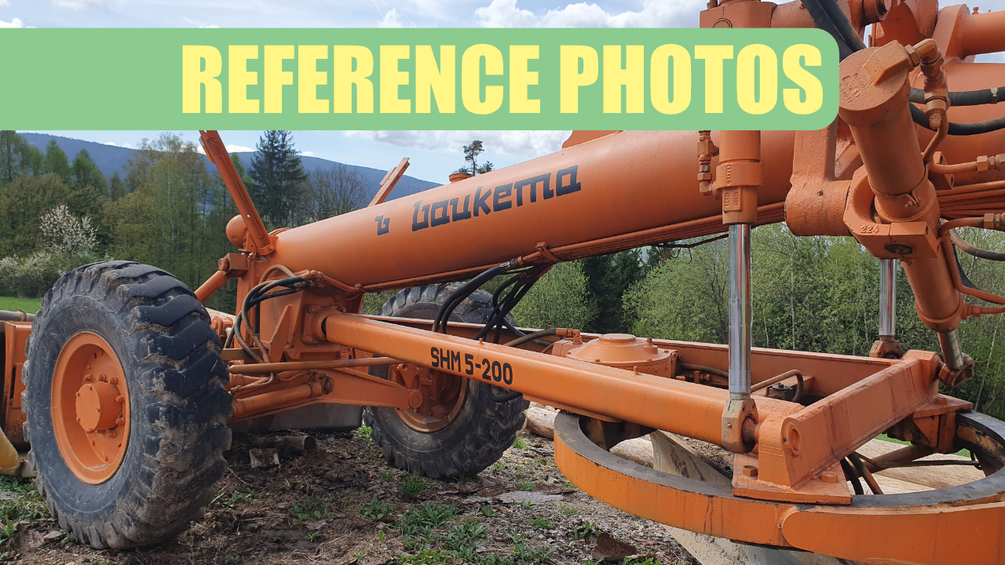

References - SHM 5-200

These PACK reference photos suitable for both 2D and 3D artists.

These images capture intricate details and offer endless possibilities for your creative projects.

Feel free to use them for inspiration, concept art, or as a base for your digital creations.

MAIN INFO:

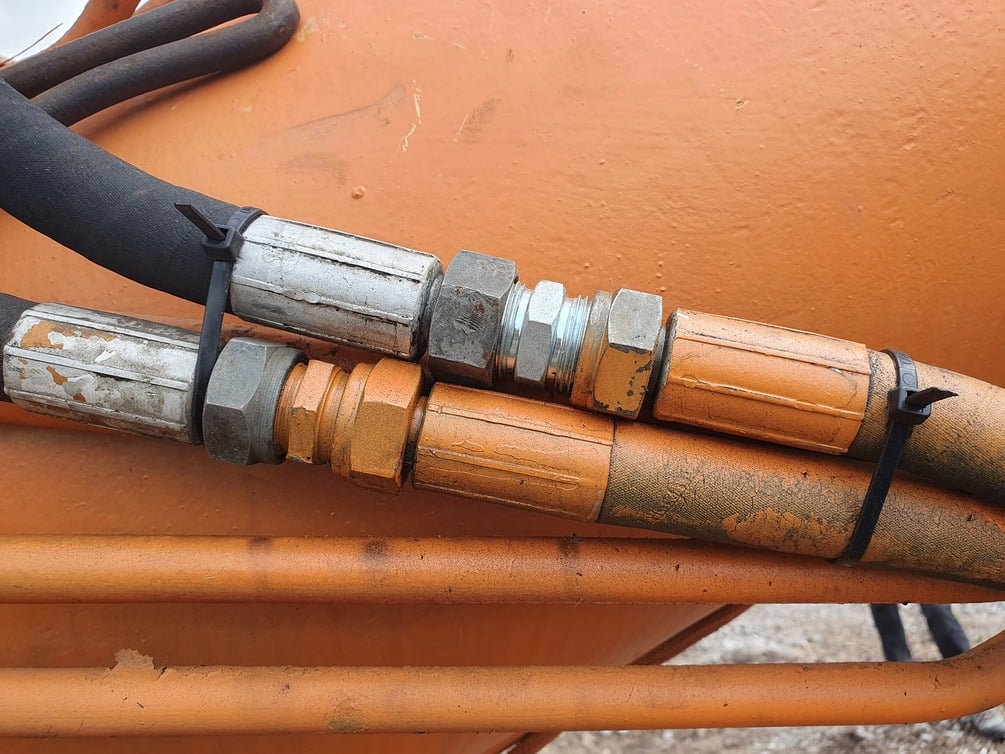

The SHM 5 - 200 motor grader is a self-propelled tandem grader, designed for earthworks such as precise leveling of flats, spreading and spreading material on slopes, digging, repairing and maintaining trenches, maintaining roadsides and removing vegetation. It can be used for digging up soil, tearing up paving and removing snow.

However, its main use is in the construction, renovation and maintenance of roads, motorways, railways, airports and in landscaping

Main technical data:

Engine 6 VD 14.5/12-1 SRW - 6 V - in-line - four-stroke - liquid-cooled - OHV distribution.

Displacement: 9840 cm³

Power: 147 kW at 2200 rpm.

Volume :

- fuel tank : 550 l ,

- hydraulic oil tank : 150 l

Max. speed : 40 km/h

Tires: 14.00 – 24.00

Dimensions in mm:

Length: with dozer blade and ripper 10500

Width: with grader blade in transport position 2500

Height: with warning beacon 3560 / without beacon 3300

Ground clearance: 240 (lowest edge of blade)

Weight in kg:

Standby: 14350

Total: 14430

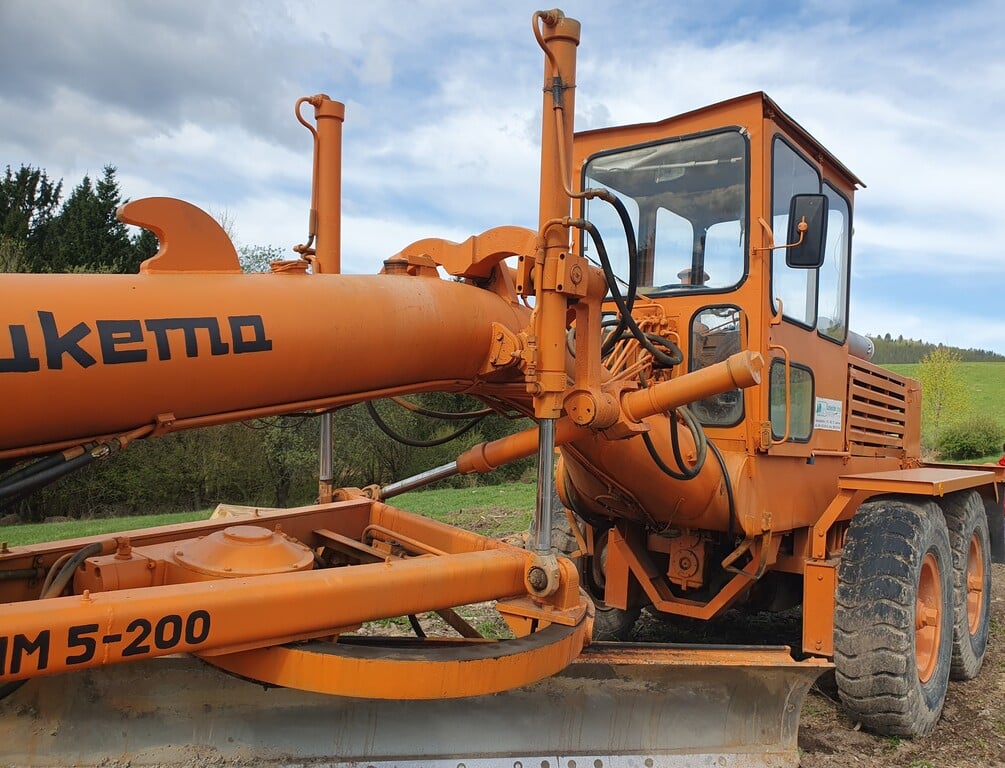

Grader blade:

Width: 3655 mm

Height: 625 mm

Cut-out height: 150 mm

Reach below wheel level: 800 mm

Rotation around own axis: 360°

Side deflection: up to 90°

Dozer blade:

Width : 2440 mm

Height : 870 mm

Cutter height : 150 mm

Reach below wheel level : 70 mm

Ground clearance : 670 mm

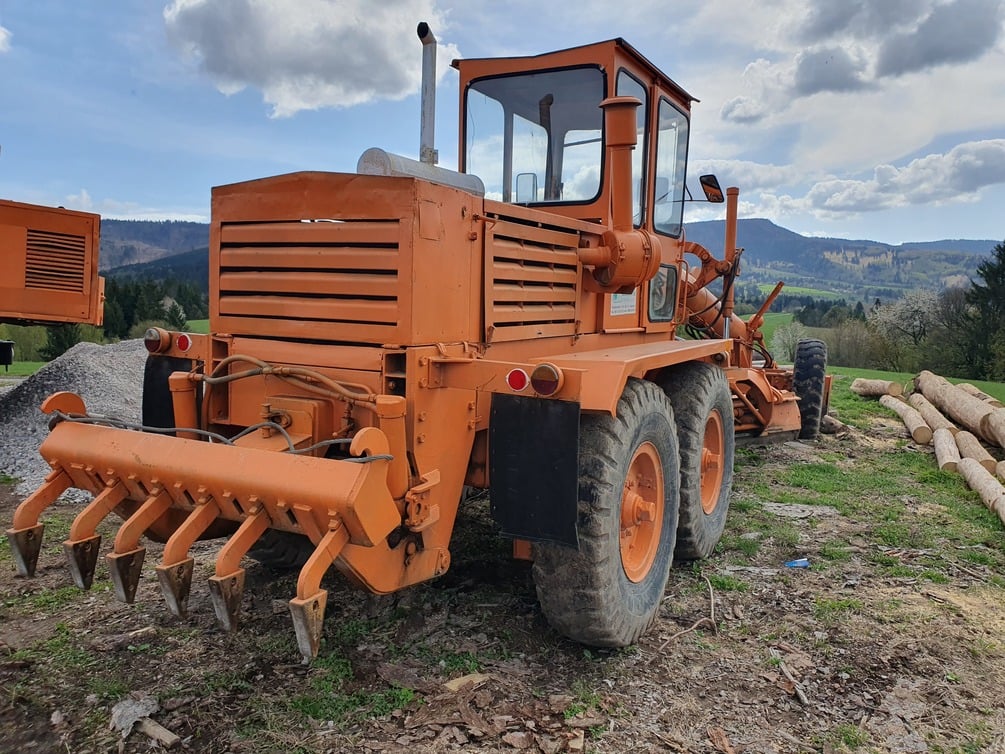

Ripper :

Number of blades : 1 to 11

Cut width : 1550 mm

Rip depth : 250 mm

Ground clearance : 590 mm

Truck --> include 45 photos
